Details/spec
The Press:

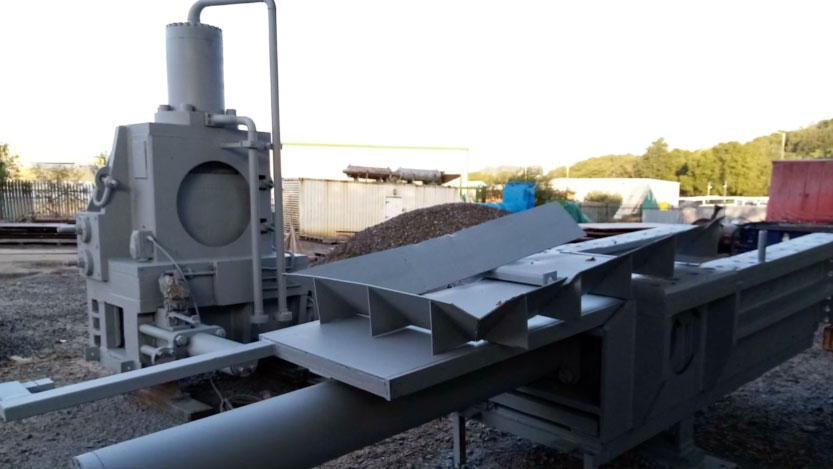

The Harris model TGS 57 is an automatic Press designed for producing dence bales.

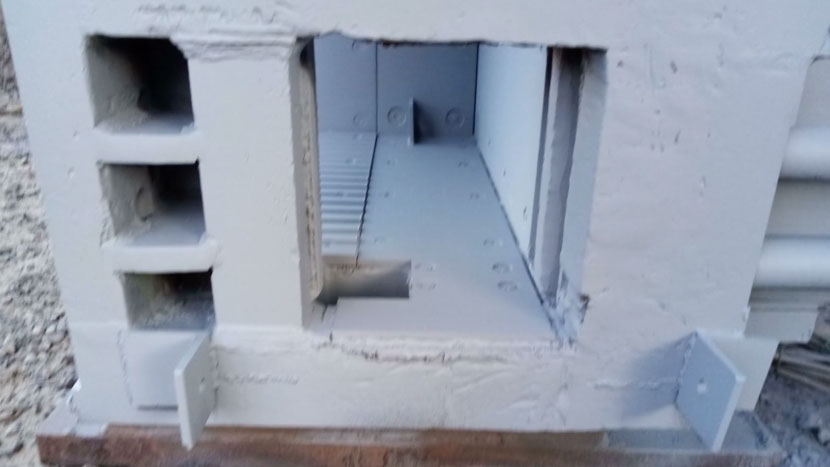

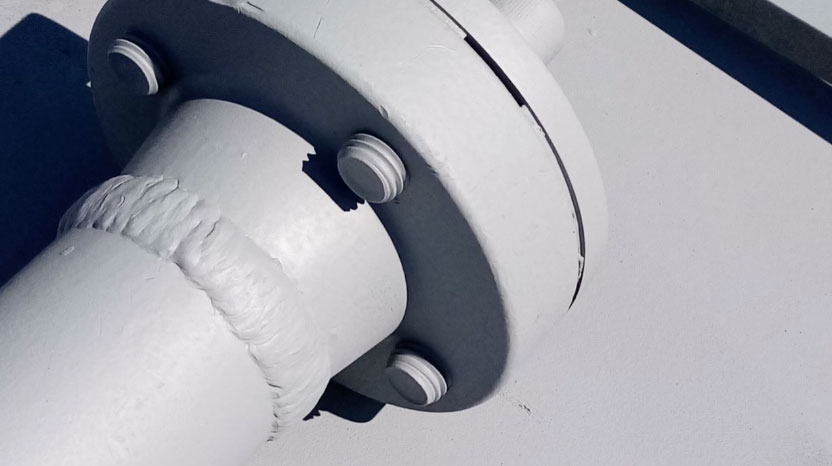

All cylinders are honed and double acting, with forged flame hardened rods and bronze bushings. Hydraulic connections, cylinder heads and valves are fitted with “o” rings. The press box is lined with replaceable wear plates. Shear knife clearence is obtained by gib adjusment.
Application: Factory clips and skeletons, copper wire and sheet soft alloys of stainless sheet, low alloy aluminium sheet shapes & wire.
Bale Size:
10″ x 12″ x 15″ variable
Bale Weight:
28kg (62 pounds) avg (Aluminium)
77kg (170 pounds) avg Copper
59kg (130 pounds) avg (Steel Clips)
Operating Cycles per hour:
Extended Box (90″) up to 140 on full
Automatic repeat control
For more information contact Stuart on 01656 724 764 or s.howell@eseluk.com
