Details/spec
The Press
The Harris Model TGS 60 is an automatic press designed for producing dense bales. All cylinders are hones and double acting with forged flame hardened rods and bronze bushings. Hydraulic connections, cylinder heads and valves fitted with “o” rings. The press box is lined with replaceable wear plates. Shear knife clearance is obtained by gib adjustment.
Application
Factory clips and skeletons, copper wire and sheet, soft alloys and stainless sheets, low aluminium sheets, shapes and wire.
- Bale Size:
12″ x 12″ x 15″ variable - Bale Weight:
75 Ibs average (Aluminium)
125 Ibs average (Steel clips)
160 lbs average (Copper) - Operating Cycles per hour:
Up to 130 on full automatic repeat control
For more information contact Stuart on 01656 724 764 or s.howell@eseluk.com

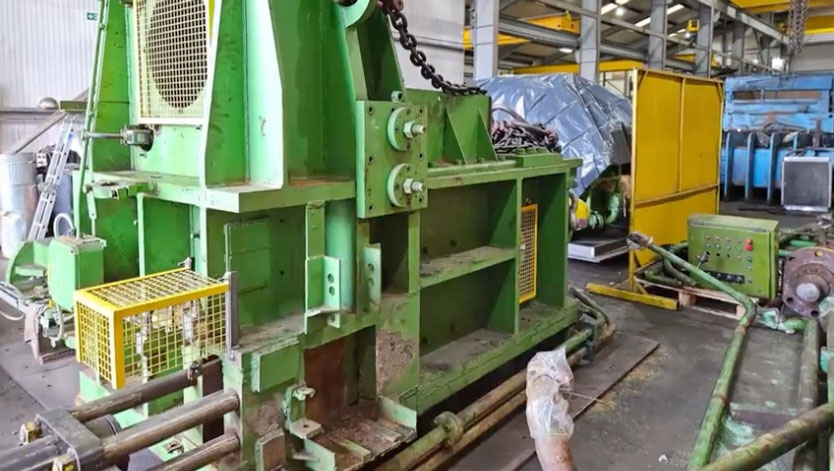

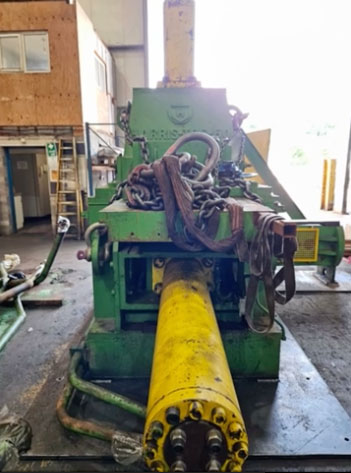

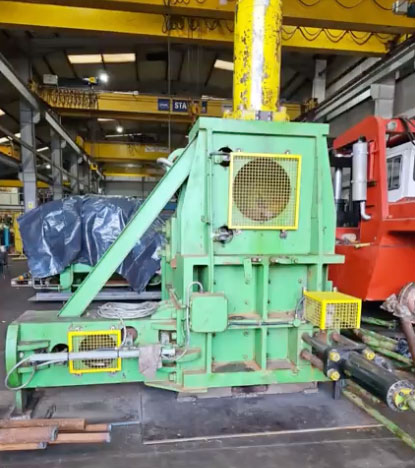

Image gallery
