Details/spec
Technical Specification

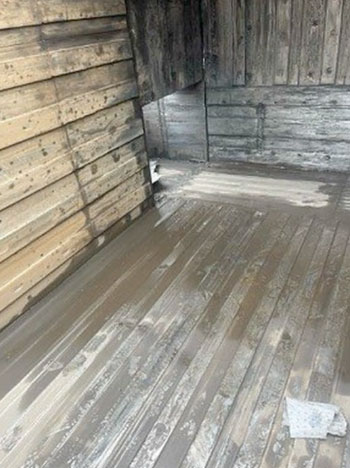

- Charging box dimensions 6,400 * 2,100 x 1,600mm
- Charging box opening 5,000 x 2,050mm

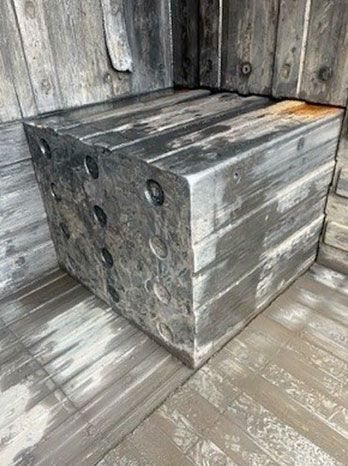

- Bale size 750mm wide x 600mm high
- Bale Weight 670kg max. for 600mm average bale length
- Density of compressed bale 40% minimum
- Bale cycle max. 52 bales / hour
- Machine output rate under fully automatic operation: shearing capability thickness 25mm, width 2,000mm
Compression ram forces
- 1. Compression force 5,000 kN
Compression stroke 5,850mm - 2 Compression force 11,000kN
Compression stroke 1,030mm - 3 Compression force 12,500kN
Compression stroke 2,800mm - Bale door closing force 1,000kN
Stroke 750mm
For more information contact Stuart on 01656 724 764 or s.howell@eseluk.com
